Sharding-JDBC MasterSlave 示例文档

读写分离,简单来说,就是将DML交给主数据库去执行,将更新结果同步至各个从数据库保持主从数据一致,DQL分发给从数据库去查询,从数据库只提供读取查询操作。读写分离特别适用于读多写少的场景下,通过分散读写到不同的数据库实例上来提高性能,缓解单机数据库的压力:

Name Remark
DQL 数据查询语言,比如select查询语句
DML 数据操纵语言,比如insert、delete、update更新语句
DDL 数据定义语言,比如create/drop/alter等语句
DCL 数据控制语言,比如grant/rollback/commit等语句

Sharding-JDBC是一个开源的分布式数据库中间件解决方案。它在Java的JDBC层以对业务应用零侵入的方式额外提供数据分片,读写分离,柔性事务和分布式治理能力。并在其基础上提供封装了MySQL协议的服务端版本,用于完成对异构语言的支持。

基于JDBC的客户端版本定位为轻量级Java框架,使用客户端直连数据库,以jar包形式提供服务,无需额外部署和依赖,可理解为增强版的JDBC驱动,完全兼容JDBC和各种ORM框架。

封装了MySQL协议的服务端版本定位为透明化的MySQL代理端,可以使用任何兼容MySQL协议的访问客户端(如:MySQL Command Client, MySQL Workbench等)操作数据,对DBA更加友好。

以上内容摘抄至Sharding-JDBC官网 (http://shardingjdbc.io/document/legacy/2.x/cn/00-overview/)

本文主要探讨在SpringBoot环境下如何使用Sharding-JDBC提供的读写分离解决方案;

环境

1
2
3
SpringBoot: 1.5.7.RELEASE,
MybatisPlus: 2.1.4,
Sharding-JDBC: 2.0.0.M2

POM.xml

Sharding-JDBC现已提供相关的Starter, 集成起来非常简单;

下面是完整的pom文件(springboot & mysql & mybatis-plus & sharding-jdbc)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>

<groupId>com.example</groupId>
<artifactId>sharding-jdbc-example-with-spring-boot</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>jar</packaging>

<name>sharding-jdbc-example-with-spring-boot</name>
<description>Demo project for Spring Boot</description>

<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>1.5.7.RELEASE</version>
</parent>

<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.7</maven.compiler.source>
<maven.compiler.target>1.7</maven.compiler.target>
<mybatisplus-spring-boot-starter.version>1.0.5</mybatisplus-spring-boot-starter.version>
<mybatisplus.version>2.1.4</mybatisplus.version>
<HikariCP.version>2.7.2</HikariCP.version>
<fastjson.version>1.2.39</fastjson.version>
<commons-dbcp.version>1.4</commons-dbcp.version>
<mysql-connector-java.version>5.1.30</mysql-connector-java.version>
</properties>

<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jetty</artifactId>
</dependency>
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
</dependency>
<dependency>
<groupId>com.zaxxer</groupId>
<artifactId>HikariCP</artifactId>
<version>${HikariCP.version}</version>
</dependency>

<!-- mybatis-plus begin -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatisplus-spring-boot-starter</artifactId>
<version>${mybatisplus-spring-boot-starter.version}</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus</artifactId>
<version>${mybatisplus.version}</version>
</dependency>
<!-- mybatis-plus end -->

<!-- JUnit test dependency -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>${fastjson.version}</version>
</dependency>
<!--sharding-jdbc-->
<dependency>
<groupId>io.shardingjdbc</groupId>
<artifactId>sharding-jdbc-spring-boot-starter</artifactId>
<version>2.0.0.M2</version>
</dependency>
<dependency>
<groupId>commons-dbcp</groupId>
<artifactId>commons-dbcp</artifactId>
<version>${commons-dbcp.version}</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql-connector-java.version}</version>
</dependency>

<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<!-- https://mvnrepository.com/artifact/cn.hutool/hutool-all -->
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>4.0.12</version>
</dependency>
</dependencies>

<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>8</source>
<target>8</target>
</configuration>
</plugin>
</plugins>
</build>

</project>

多数据源配置 (application.yml)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
server:
port: 10086

sharding:
jdbc:
datasource:
names: ds_master_0,ds_slave_0_1,ds_slave_0_2
ds_master_0:
type: org.apache.commons.dbcp.BasicDataSource
driverClassName: com.mysql.jdbc.Driver
url: jdbc:mysql://127.0.01:3306/ds_master?useUnicode=true&characterEncoding=UTF-8&useSSL=false
username: root
password: root
ds_slave_0_1:
type: org.apache.commons.dbcp.BasicDataSource
driverClassName: com.mysql.jdbc.Driver
url: jdbc:mysql://127.0.01:3306/ds_slave_0?useUnicode=true&characterEncoding=UTF-8&useSSL=false
username: root
password: root
ds_slave_0_2:
type: org.apache.commons.dbcp.BasicDataSource
driverClassName: com.mysql.jdbc.Driver
url: jdbc:mysql://127.0.01:3306/ds_slave_1?useUnicode=true&characterEncoding=UTF-8&useSSL=false
username: root
password: root
config:
# 主从策略
masterslave:
load-balance-algorithm-type: round_robin # 负载策略
name: ds_m_1_s_2
master-data-source-name: ds_master_0
slave-data-source-names: ds_slave_0_1,ds_slave_0_2
sharding:
props:
sql:
show: true

#mybatis
mybatis-plus:
datasource: dataSource
mapper-locations: classpath:/mapper/*Mapper.xml
#实体扫描,多个package用逗号或者分号分隔
typeAliasesPackage: com.example.shardingjdbcexamplewithspringboot.entity
global-config:
#主键类型 0:"数据库ID自增", 1:"用户输入ID",2:"全局唯一ID (数字类型唯一ID)", 3:"全局唯一ID UUID";
id-type: 0
#字段策略 0:"忽略判断",1:"非 NULL 判断"),2:"非空判断"
field-strategy: 2
#驼峰下划线转换
db-column-underline: true
#刷新mapper 调试神器
refresh-mapper: true
#逻辑删除配置
logic-delete-value: 0
logic-not-delete-value: 1
configuration:
map-underscore-to-camel-case: true
cache-enabled: false

实际上到这一步就完成了最简单的配置, 为了测试效果, 生成相关的数据库和实体吧:

init data.sql

建立3个数据库, 分别为主, 从1, 从2, 为了区分数据来源, 在from中指定了节点名称;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
CREATE SCHEMA IF NOT EXISTS `ds_master`;

DROP TABLE IF EXISTS `ds_master`.`tb_employee`;
CREATE TABLE `ds_master`.`tb_employee` (
`id` int NOT NULL AUTO_INCREMENT ,
`name` varchar(255) NULL ,
`from` varchar(255) NULL ,
PRIMARY KEY (`id`)
);

INSERT INTO `ds_master`.`tb_employee` VALUES(1,'name1', 'ds_master');
INSERT INTO `ds_master`.`tb_employee` VALUES(2,'name2', 'ds_master');
INSERT INTO `ds_master`.`tb_employee` VALUES(3,'name3', 'ds_master');

####
CREATE SCHEMA IF NOT EXISTS `ds_slave_0`;

DROP TABLE IF EXISTS `ds_slave_0`.`tb_employee`;
CREATE TABLE `ds_slave_0`.`tb_employee` (
`id` int NOT NULL AUTO_INCREMENT ,
`name` varchar(255) NULL ,
`from` varchar(255) NULL ,
PRIMARY KEY (`id`)
);

INSERT INTO `ds_slave_0`.`tb_employee` VALUES(1,'name1', 'ds_slave_0');
INSERT INTO `ds_slave_0`.`tb_employee` VALUES(2,'name2', 'ds_slave_0');
INSERT INTO `ds_slave_0`.`tb_employee` VALUES(3,'name3', 'ds_slave_0');


####
CREATE SCHEMA IF NOT EXISTS `ds_slave_1`;

DROP TABLE IF EXISTS `ds_slave_1`.`tb_employee`;
CREATE TABLE `ds_slave_1`.`tb_employee` (
`id` int NOT NULL AUTO_INCREMENT ,
`name` varchar(255) NULL ,
`from` varchar(255) NULL ,
PRIMARY KEY (`id`)
);

INSERT INTO `ds_slave_1`.`tb_employee` VALUES(1,'name1', 'ds_slave_1');
INSERT INTO `ds_slave_1`.`tb_employee` VALUES(2,'name2', 'ds_slave_1');
INSERT INTO `ds_slave_1`.`tb_employee` VALUES(3,'name3', 'ds_slave_1');

Entity / Mapper / Service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
@Data
@Builder
@ToString
@NoArgsConstructor
@AllArgsConstructor
@TableName("tb_employee")
public class EmployeeEntity {

@TableId(type = IdType.AUTO)
private Integer id;

@TableField
private String name;

@TableField
private String from;
}


public interface EmployeeMapper extends BaseMapper {
}

单元测试

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
@RunWith(SpringRunner.class)
@SpringBootTest(classes = ShardingJdbcExampleWithSpringBootApplication.class)
public class ShardingJdbcExampleWithSpringBootApplicationTests {

@Resource
EmployeeMapper employeeMapper;


@Test
public void testMasterSlave() {
// search slave db;
Console.log("search slave db:");
for (int i = 0; i {
Console.log(employeeMapper.selectById(1));
}).run();
}
Console.log("==========================================\n");

EmployeeEntity employeeEntity = EmployeeEntity.builder().name("test").from("write master db").build();
Integer insert = employeeMapper.insert(employeeEntity);
Console.log("write master db: {}", insert > 0); // true
Console.log("==========================================\n");

EmployeeEntity ret = employeeMapper.selectOne(employeeEntity);
Console.log("search by \"write master db\": {}", ret); // null
Console.log("==========================================\n");

// 强制路由,访问masterdb数据
HintManager hintManager = HintManager.getInstance();
hintManager.setMasterRouteOnly();
ret = employeeMapper.selectOne(employeeEntity); //(id=9, name=test, from=write master db)
Console.log("[HintManager]search by \"write master db\": {}", ret);
hintManager.close();
}
}

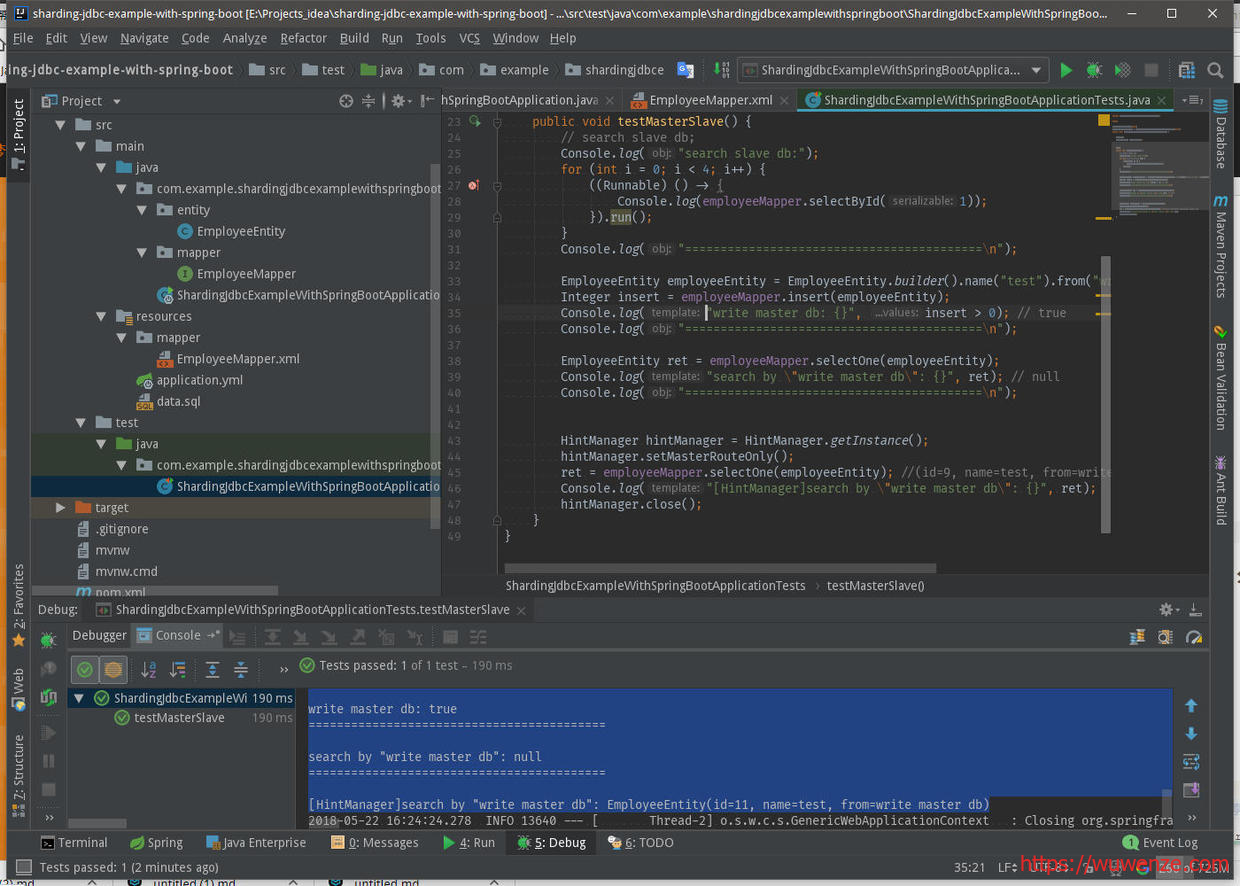

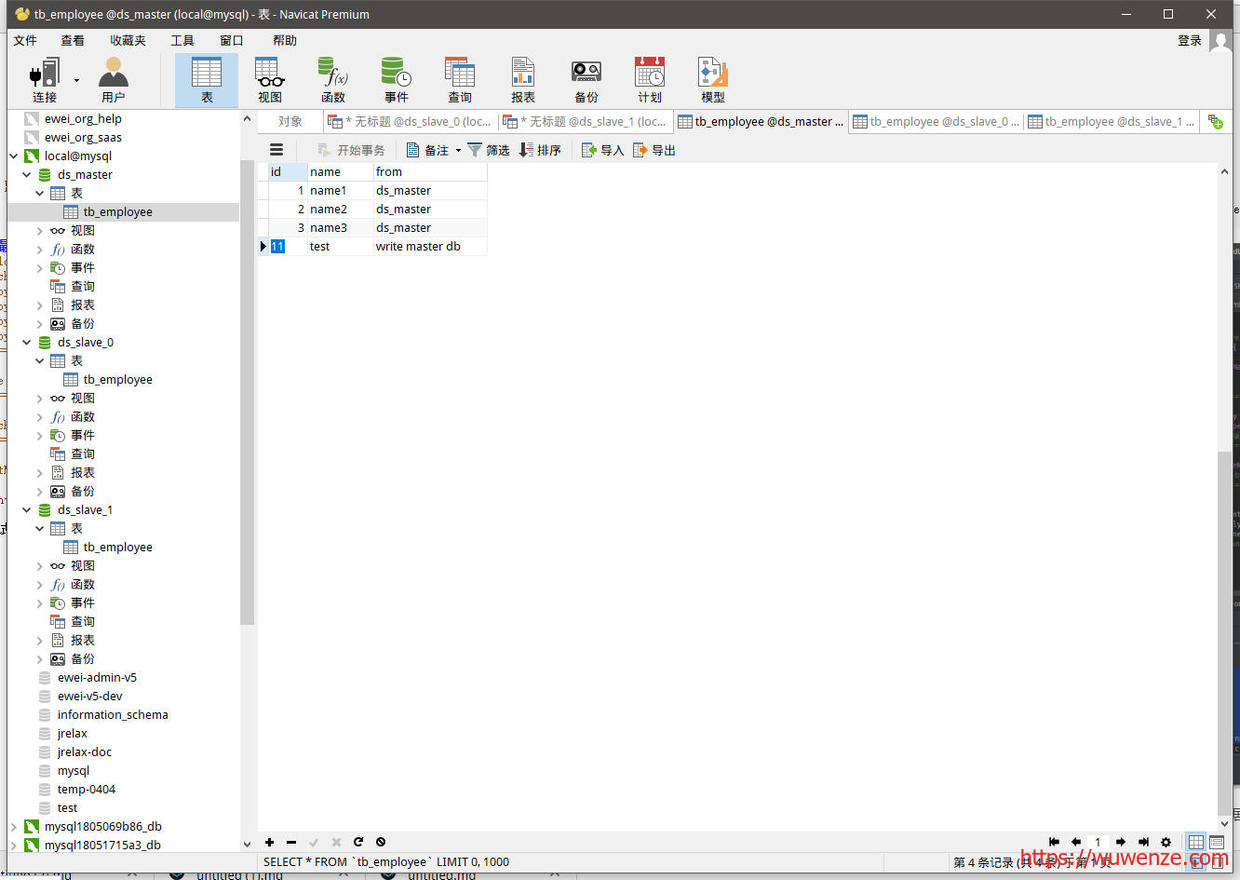

最终结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
search slave db:
EmployeeEntity(id=1, name=name1, from=ds_slave_0)
EmployeeEntity(id=1, name=name1, from=ds_slave_0)
EmployeeEntity(id=1, name=name1, from=ds_slave_1)
EmployeeEntity(id=1, name=name1, from=ds_slave_0)
==========================================

write master db: true
==========================================

search by "write master db": null
==========================================

[HintManager]search by "write master db": EmployeeEntity(id=11, name=test, from=write master db)



如测试效果一般, Sharding-JDBC可以帮你轻松的实现读写分离, 但是数据同步仍然是需要考虑的问题;

评论

Your browser is out-of-date!

Update your browser to view this website correctly. Update my browser now

×
