Ewei Dubbo自定义Http协议返回值过滤器

公司将Dubbo又封装了一层,通过注解直接暴露Service接口,在序列化返回结果时,简单粗暴的将实体的所有非空属性全部序列化出来了,接口的返回体相当庞大,很是浪费资源。

核心实现

使用FastJson的com.alibaba.fastjson.serializer.PropertyFilter,在序列化时,排除相关的属性,核心代码如下:

1
2
3
4
5
6
7
8
9
10
PropertyFilter profilter = new PropertyFilter(){
@Override
public boolean apply(Object object, String name, Object value) {
if(name.equalsIgnoreCase("password")){
return false; // 排除password 属性
}
return true;
}
};
serializer.addFilter(profilter);

V2接口基于Dubbo相关协议封装(JavaDoc:http://doc.ewei.ren/budo-dubbo-protocol-http/),在序列化接口返回信息时,没有做相关的配置;

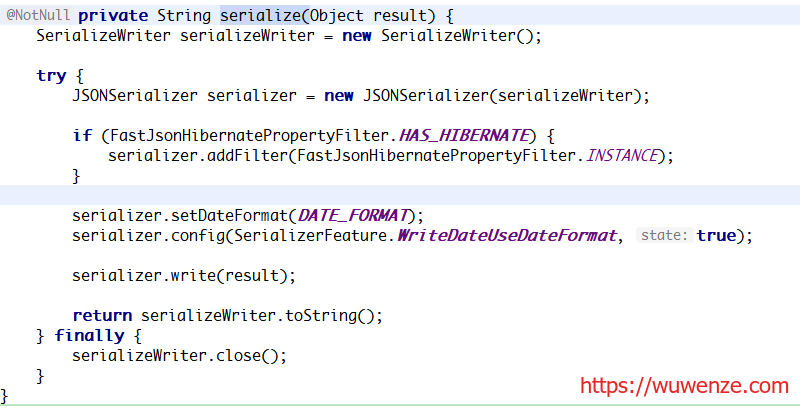

其核心序列化逻辑在org.budo.dubbo.protocol.http.view.render.ViewRendercom.ewei.common.dubbo.http.view.render.EweiDubboHttpApiJsonViewRender实现类中,见下图:



现只需要在序列化之前,添加相关的PropertyFilter即可。

1
serializer.addFilter(new XxxPropertyFilter());

@ApiResponseFilter注解定义

考虑到通用性和灵活性,每个接口的PropertyFilter的定义显然是不一样的,可以通过注解配置在接口方法上,然后在使用时读取注解配置,动态生成PropertyFilter对象。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
/**
* 注解在V2接口上,规定接口返回结果JSON的序列化规则。
* @author wwz
* @version 1 (2018/10/23)
* @since Java7
*/
@Target({ ElementType.METHOD })
@Retention(RetentionPolicy.RUNTIME)
@Inherited
public @interface ApiResponseFilter {

/**
* 指定配置的序列化规则作用的实体类
* 当配置includeFields时,该属性必填
* @return
*/
Class<?> clazz() default EmptyClazz.class;

/**
* 要排除的字段,多个用","分割 (优先级0)
* @return
*/
String ignoreFields() default "";

/**
* 要序列化的字段,多个用","分割 (优先级1)
* @return
*/
String includeFields() default "";

class EmptyClazz {}
}

一般来说,一个@ApiResponseFilter,对应一个clazz,然而一个复杂的返回对象中,往往不止一个实体对象(存在嵌套关系),这时候就需要配置一组@ApiResponseFilter规则了。

下面通过组合注解的方式,将@ApiResponseFilter进行包装:

1
2
3
4
5
6
7
8
9
10
11
12
13
/**
* @author wwz
* @version 1 (2018/10/23)
* @since Java7
* @see ApiResponseFilter
*/
@Target({ ElementType.METHOD })
@Retention(RetentionPolicy.RUNTIME)
@Inherited
public @interface ApiResponseFilters {

ApiResponseFilter[] value();
}

通用PropertyFilter定义

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
/**
* 自定义实现:指定序列化时只能包含哪些属性
* @author wwz
* @version 1 (2018/10/24)
* @since Java7
*/
public class BudoJsonIncludeFieldFilter implements PropertyFilter {
private final static String[] PUBLIC_INCLUDE_FIELDS =//
{"result", "status", "error", "error_code", "error_description", "empty", "list", "recordCount"};
private Class<?> clazz;
private String[] includeFields;

public BudoJsonIncludeFieldFilter(Class<?> clazz, String... includeFields) {
this.clazz = clazz;
this.includeFields = includeFields;
this.assertionOfParameters();
}

public BudoJsonIncludeFieldFilter(Class<?> clazz, String includeFields) {
this.clazz = clazz;
this.includeFields = includeFields.split(",");
this.assertionOfParameters();
}

private void assertionOfParameters() {
if (null == clazz) {
throw new IllegalArgumentException("#1024 clazz is null.");
}
if (null == includeFields || includeFields.length == 0) {
throw new IllegalArgumentException("#1024 includeFields is null.");
}
}

@Override
public boolean apply(Object obj, String field, Object value) {
if (!StringUtil.equals(obj.getClass().getName(), clazz.getName())) {
return true;
}
for (String includeField : includeFields) {
includeField = StringUtil.trim(includeField);
if (StringUtil.equalsIgnoreCase(includeField, field)) {
return true;
}
}
return false;
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
/**
* 自定义实现:指定序列化时需要排除哪些属性
* @author wwz
* @version 1 (2018/10/24)
* @since Java7
*/
public class BudoJsonIgnoreFieldFilter implements PropertyFilter {
private Class<?> clazz;
private String[] ignoreFieldNames;

public BudoJsonIgnoreFieldFilter(String... ignoreFieldNames) {
this(null, ignoreFieldNames);
}

public BudoJsonIgnoreFieldFilter(Class<?> clazz, String... ignoreFieldNames) {
this.clazz = clazz;
this.ignoreFieldNames = ignoreFieldNames;
this.assertionOfParameters();
}

public BudoJsonIgnoreFieldFilter(String ignoreFieldNames) {
this(null, ignoreFieldNames);
}

public BudoJsonIgnoreFieldFilter(Class<?> clazz, String ignoreFieldNames) {
this.clazz = clazz;
this.ignoreFieldNames = ignoreFieldNames.split(",");
this.assertionOfParameters();
}

private void assertionOfParameters() {
if (null == ignoreFieldNames || ignoreFieldNames.length == 0) {
throw new IllegalArgumentException("#1024 ignoreFieldNames is null.");
}
}

@Override
public boolean apply(Object obj, String field, Object value) {
String objClassName = obj.getClass().getName();
if (null != clazz &&//
!StringUtil.equals(objClassName, clazz.getName())) {
return true;
}

for (String ignoreField : ignoreFieldNames) {
ignoreField = StringUtil.trim(ignoreField);
if (StringUtil.equalsIgnoreCase(ignoreField, field)) {
return false;
}
}
return true;
}
}

ViewRender重构

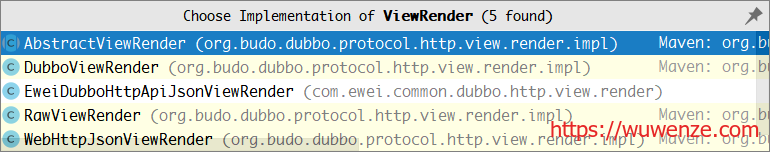

ViewRender用于视图的渲染,是一个顶层的接口,其主要实现类有以下:

由于在渲染JSON数据时,需要获取到当前接口的配置信息(注解),目前的ViewRender还满足不了,重新定义后如下:

1
2
3
4
5
6
7
8
public interface ViewRender {
void renderView(ProtocolRequest request, ProtocolResponse response, Object result) throws Throwable;
}

// 添加Invocation参数
public interface ViewRender {
void renderView(ProtocolRequest request, ProtocolResponse response, Invocation invocation, Object result) throws Throwable;
}

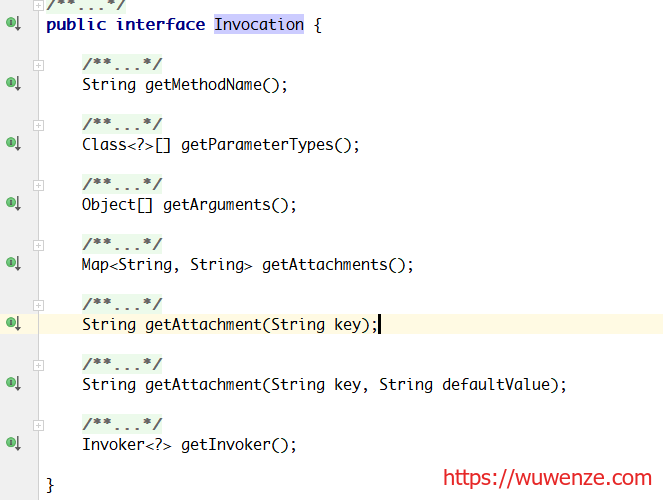

com.alibaba.dubbo.rpc.Invocation中包含RPC调用相关参数信息:



可以通过getInvoker().getInterface()、getMethodName()、getParameterTypes()等信息获取到被调用接口的相关对象,从而反射获取@ApiResponseFilter配置。

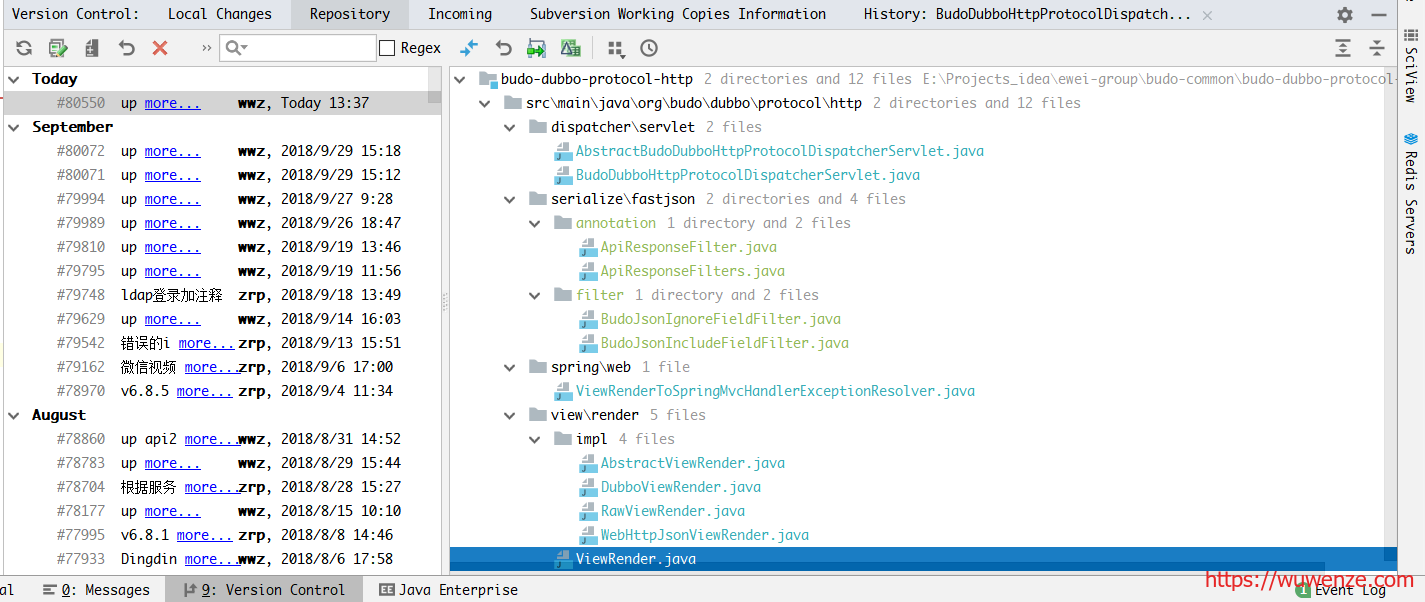

顶级ViewRender被重新定义后,相关的实现类也做响应的重构操作(这里不详细描述了,见ewei-group项目SVN提交:#80550)

EweiDubboHttpApiJsonViewRender实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
@Override
protected void doWriteResponse(ProtocolRequest protocolRequest, ProtocolResponse protocolResponse, Invocation invocation, Object result) throws IOException {
String json = this.serializeJsonString(invocation, result);
protocolResponse.write(new ByteArrayInputStream(json.getBytes()));
}

private String serializeJsonString(Invocation invocation, Object result) {
SerializeWriter serializeWriter = new SerializeWriter();

try {
JSONSerializer serializer = new JSONSerializer(serializeWriter);

if (FastJsonHibernatePropertyFilter.HAS_HIBERNATE) {
serializer.addFilter(FastJsonHibernatePropertyFilter.INSTANCE);
}
// 根据调用接口配置的@ApiResponseFilter注解,动态生成PropertyFilter
this.builderSerializerFilter(serializer, invocation);
serializer.setDateFormat(DATE_FORMAT);
serializer.config(SerializerFeature.WriteDateUseDateFormat, true);

serializer.write(result);

return serializeWriter.toString();
} finally {
serializeWriter.close();
}
}

private void builderSerializerFilter(JSONSerializer serializer, Invocation invocation) {
if (null == invocation) {
return;
}
List<ApiResponseFilter> apiResponseFilters = this.getMethodAnnotationWithApiResponseFilter(invocation);
if (CollectionUtil.isEmpty(apiResponseFilters)) {
return;
}
for (ApiResponseFilter apiResponseFilter : apiResponseFilters) {
Class<?> clazz = apiResponseFilter.clazz();
if (StringUtil.equals(clazz.getName(), ApiResponseFilter.EmptyClazz.class.getName())) {
clazz = null;
}
String ignoreFields = apiResponseFilter.ignoreFields();
String includeFields = apiResponseFilter.includeFields();

if (!StringUtil.isEmpty(ignoreFields)) {
serializer.addFilter(new BudoJsonIgnoreFieldFilter(clazz, ignoreFields));
}
if (!StringUtil.isEmpty(includeFields)) {
serializer.addFilter(new BudoJsonIncludeFieldFilter(clazz, includeFields));
}
}
}

private List<ApiResponseFilter> getMethodAnnotationWithApiResponseFilter(Invocation invocation) {
List<ApiResponseFilter> apiResponseFilterList = new ArrayList<>();

Invoker<?> invoker = invocation.getInvoker();
ApiResponseFilters apiResponseFilters = BudoReflectionUtil.getMethodAnnotation(invoker.getInterface(), //
invocation.getMethodName(), //
invocation.getParameterTypes(), //
ApiResponseFilters.class);
if (null != apiResponseFilters) {
ApiResponseFilter[] filters = apiResponseFilters.value();
if (!ArrayUtil.isEmpty(filters)) {
for (ApiResponseFilter filter : filters) {
apiResponseFilterList.add(filter);
}
}
}

ApiResponseFilter apiResponseFilter = BudoReflectionUtil.getMethodAnnotation(invoker.getInterface(), //
invocation.getMethodName(), //
invocation.getParameterTypes(), //
ApiResponseFilter.class);
if (null != apiResponseFilter) {
apiResponseFilterList.add(apiResponseFilter);
}
return apiResponseFilterList;
}

测试

定义一个测试用的JavaBean:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public class TestEntity {

private Integer id;
private String name;
private String key;
private TestEntity1 testEntity1;

//...
}

public class TestEntity1 {

private String name;
private String value;

//...
}

初始化数据:

1
2
3
4
5
6
7
8
9
10
11
12
private TestEntity build() {
TestEntity testEntity = new TestEntity();
testEntity.setId(1);
testEntity.setName("name");
testEntity.setKey("key");

TestEntity1 testEntity1 = new TestEntity1();
testEntity1.setName("name1");
testEntity1.setValue("value1");
testEntity.setTestEntity1(testEntity1);
return testEntity;
}

按照Open V2的方式定义测试接口,并测试@ApiResponseFilter注解

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
public interface OpenTestApiResponseFilterApi {

/**
* 不做任何限制
* {
* "result": {
* "id": 1,
* "key": "key",
* "name": "name",
* "testEntity1": {
* "name": "name1",
* "value": "value1"
* }
* },
* "status": 0
* }
* @return
*/
public TestEntity test();

/**
* 限制返回结果中,TestEntity只能包含id,testEntity1两个字段
* {
* "result": {
* "id": 1,
* "testEntity1": {
* "name": "name1",
* "value": "value1"
* }
* },
* "status": 0
* }
* @return
*/
@ApiResponseFilter(clazz = TestEntity.class, includeFields = "id,testEntity1")
public TestEntity test1();

/**
* 需要忽略的字段(不限制实体类)
* {
* "result": {
* "id": 1,
* "name": "name",
* "testEntity1": {
* "name": "name1"
* }
* },
* "status": 0
* }
* @return
*/
@ApiResponseFilter(ignoreFields = "key,value")
public TestEntity test2();

/**
* 需要忽略的字段(TestEntity中)
* {
* "result": {
* "id": 1,
* "name": "name",
* "testEntity1": {
* "name": "name1",
* "value": "value1"
* }
* },
* "status": 0
* }
* @return
*/
@ApiResponseFilter(clazz = TestEntity.class, ignoreFields = "key,value")
public TestEntity test3();

/**
* 同时配置多个规则,将按照配置顺序依次添加相关的PropertyFilter
* {
* "result": {
* "key": "key",
* "name": "name",
* "testEntity1": {
* "value": "value1"
* }
* },
* "status": 0
* }
* @return
*/
@ApiResponseFilters({ //
@ApiResponseFilter(clazz = TestEntity.class, ignoreFields = "id"), //
@ApiResponseFilter(clazz = TestEntity1.class, ignoreFields = "name")
})
public TestEntity test4();
}
# Dubbo, Ewei

评论

Your browser is out-of-date!

Update your browser to view this website correctly. Update my browser now

×
